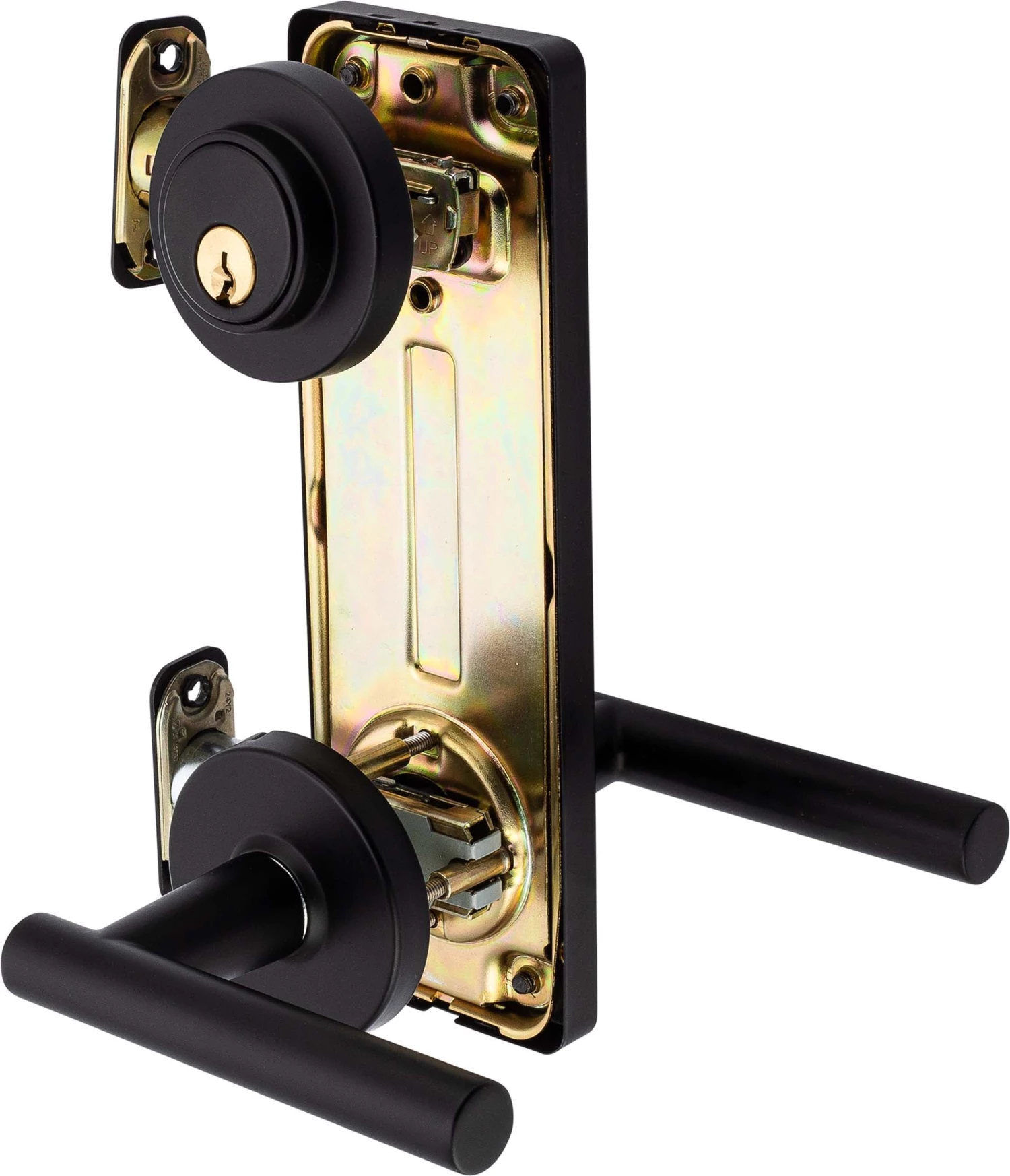

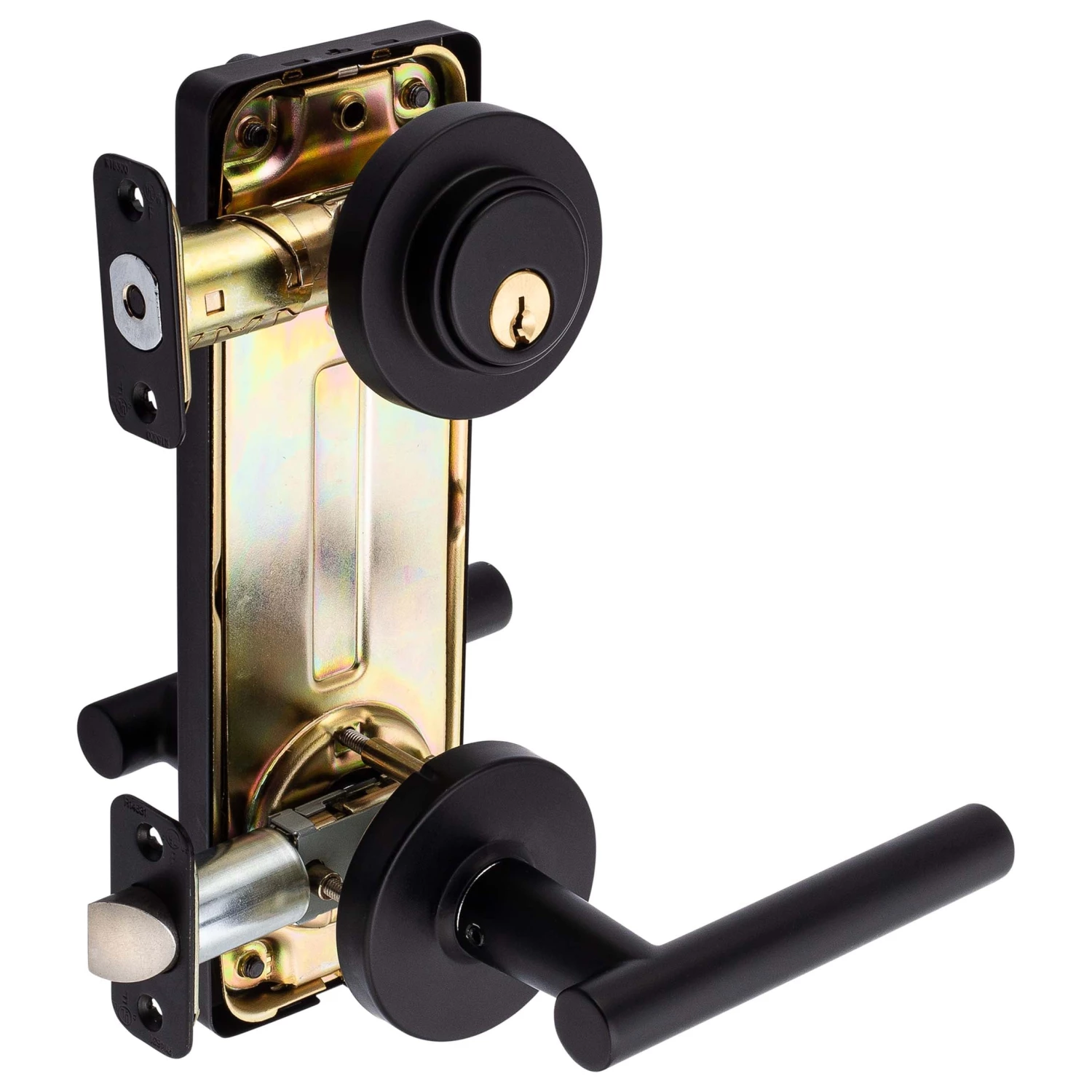

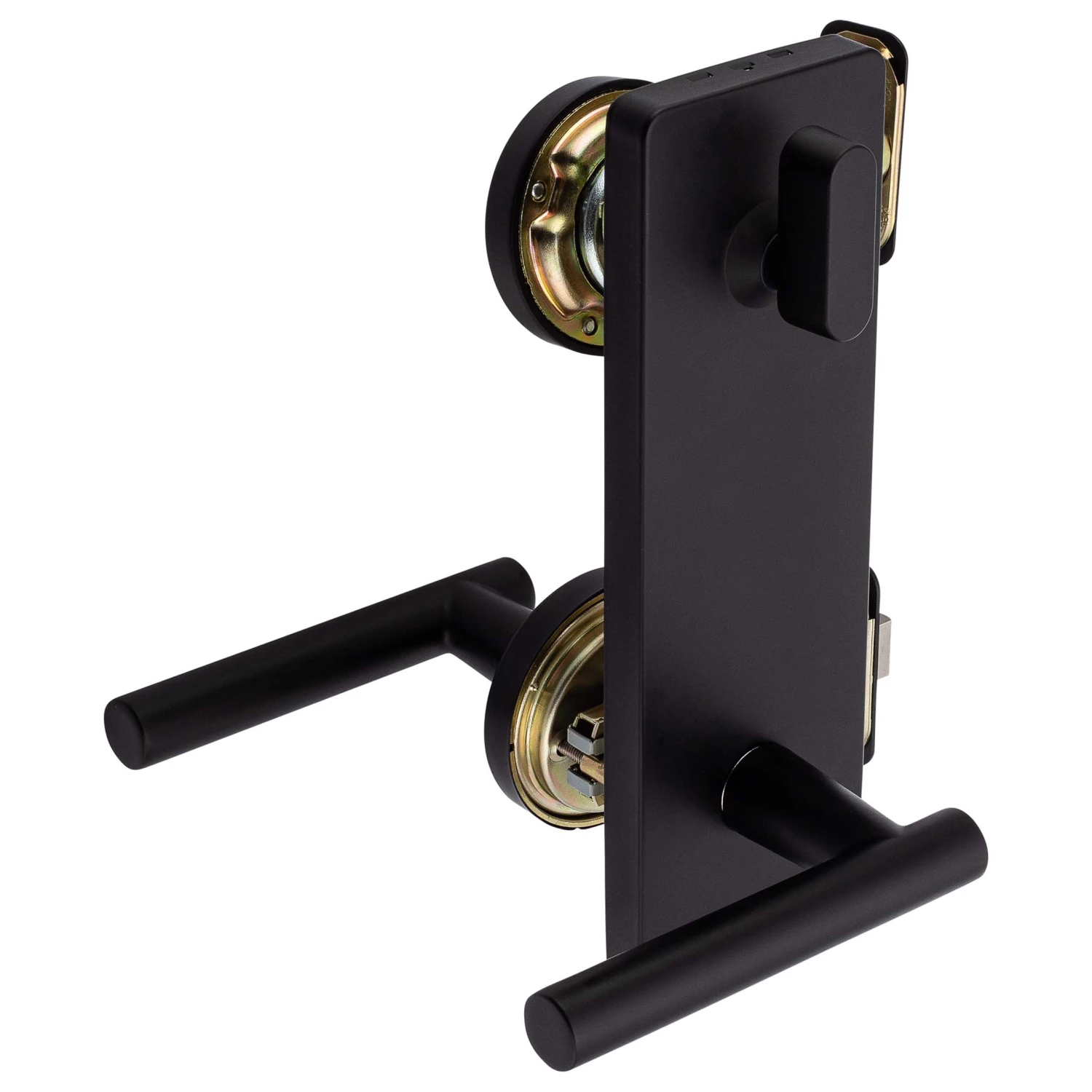

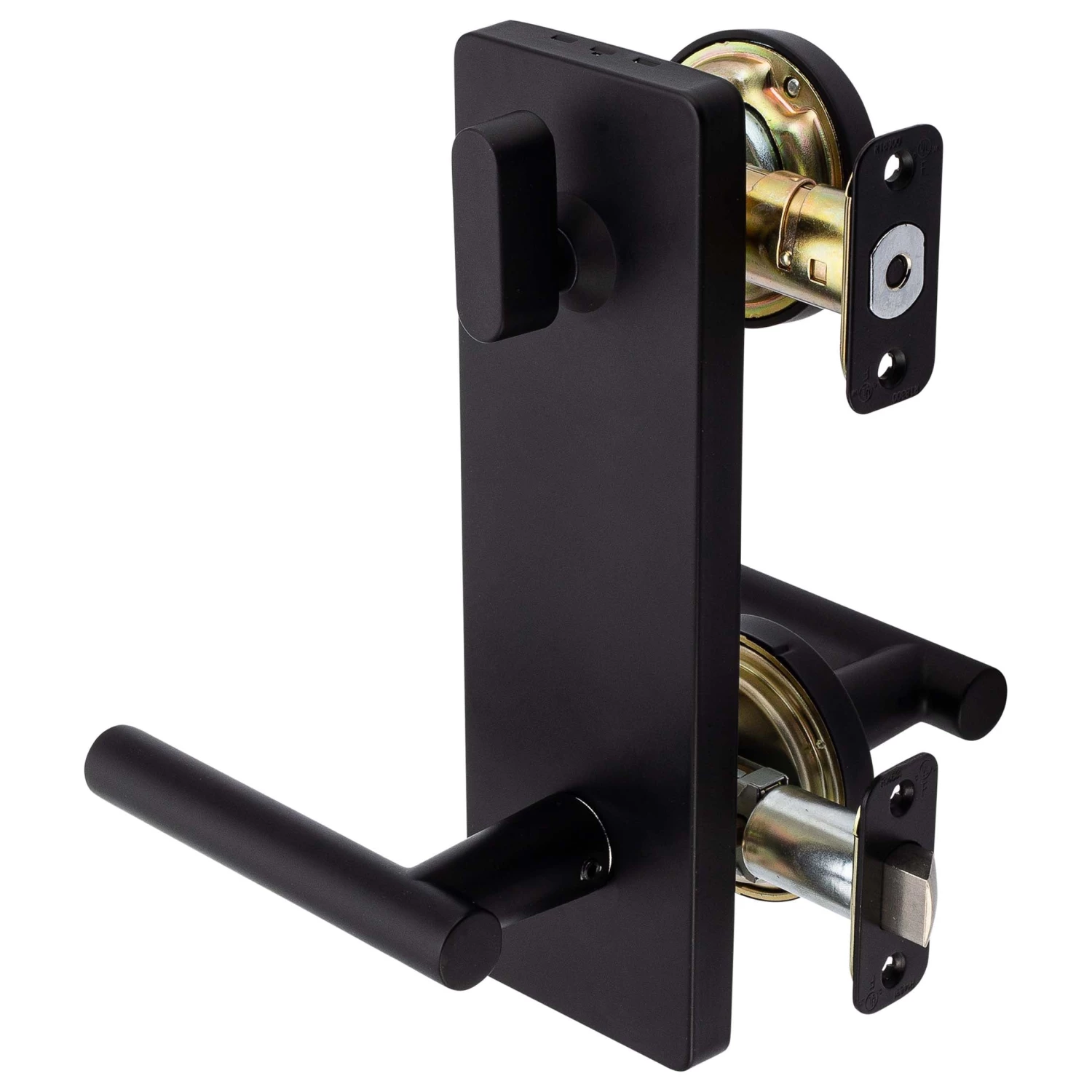

Harney Hardware Interconnected Door Lock Reversible Passage Lever, UL Fire Rated, ANSI 2, Contemporary Style Riley Collection Residential Door Locks

Interconnected Lock With Deadbolt And Reversible Passage Lever; Single Action Functionality; Deadbolt Is Operated With A Key Outside And Thumb Turn Inside; Deadbolt And Passage Latches Are Simultaneously Retracted By Lever Operation; ANSI Grade 2; ADA Compliant; UL10C 3-Hour Fire Rated; Door Prep: Cross Bore 2 1/8 Inch, Edge Bore 1 1/8 Inch; Lever And Deadbolt Bores 5 1/2 Inches Center To Center; Door Thickness: Fits Doors 1 3/8 Inches to 1 3/4 Inches Thick; Faceplates: Radius Corners 1 1/8 Inches X 2 1/4 Inches; Strikeplates: Radius Corners, Full Lip, 2 3/4 Inches X 1 1/8 Inches; Backsets: Both Deadbolt and Passage Latches Adjustable 2 3/8 Inches to 2 3/4 Inches; Bolts: Lever 1/2 Inch Throw; Deadbolt 1 Inch Throw; Lock Cylinder: Kwikset Type KW1 5-Pin Cylinder; Levers Fabricated From Die Cast Zinc; Escutcheon Fabricated From Stainless Steel; Fabricated With Die Cast Zinc Levers And Steel Mechanism; Matte Black Finish.
